baseTherm® Floor Insulation System

baseTherm^® is an NSAI Agrément-certified BEPS liquid floor insulation, complete with its own EPD.

baseTherm® pumped floor insulation is highly insulating from 0.041 WmK

baseTherm® is ultra-lightweight with thermal and acoustic properties benefits

baseTherm® is the only NSAI-certified liquid insulation for floors

It’s produced and installed on-site by our local team using our Mobile Floor Insulation Factory – without mess, waste, or fuss.  Check out the baseTherm^® images.

baseTherm^® FAQ – TECHNICAL QUESTIONS & ALL THE ANSWERS:

baseTherm® FAQ

baseTherm^® TECHNICAL DATA – BROCHURE – DOWNLOAD:

baseTherm®-Floor-Insulation-Brochure

baseTherm^® AFTER CARE:

baseTherm® AFTERCARE

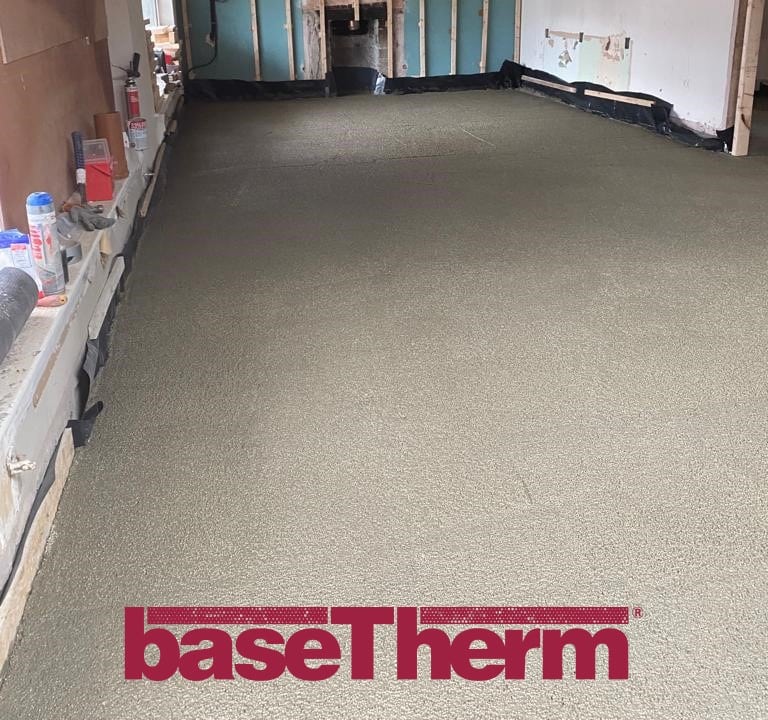

baseTherm® is poured using our Mobile Floor Insulation Factory

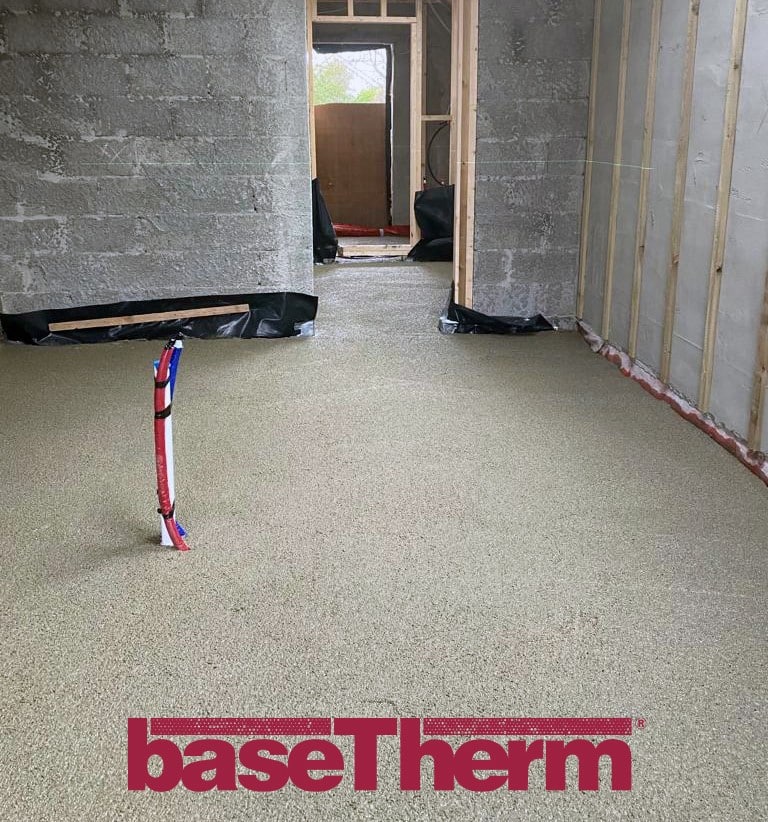

baseTherm® Floor Insulation is Highly insulating from 0.041 WmK

baseTherm® Liquid Floor Insulation is ultra-lightweight with thermal, and acoustic benefits

NSAI Agrément-certified baseTherm® Floor Insulation System is a pumpable, lightweight thermal and insulating mortar consisting of EPS beads, fast-drying cements and a proprietary additive. It is mixed on site using a purpose-built mobile EPS mortar delivery system to meet the requirements of I.S. EN 16025-1 and I.S. EN 16025-2.

baseTherm® is used as a thermally insulating, non-structural, bound expanding polystyrene system (BEPS) which can contribute to the thermal and acoustic performance of floors in either new or existing buildings.

baseTherm^® KEY BENEFITS:

• Seamless, void-free poured floor insulation
• Factory-produced on-site, no waste
• Rapid pumped installation
• Non-combustible
• Ultra-lightweight with acoustic benefits
• Highly insulating, from 0.041 W/mK
• NSAI Agrément certified
• EPD Certified – certificate available to download on EPD Ireland
• Available for specification on NBS Source and as BIM Digital Objects

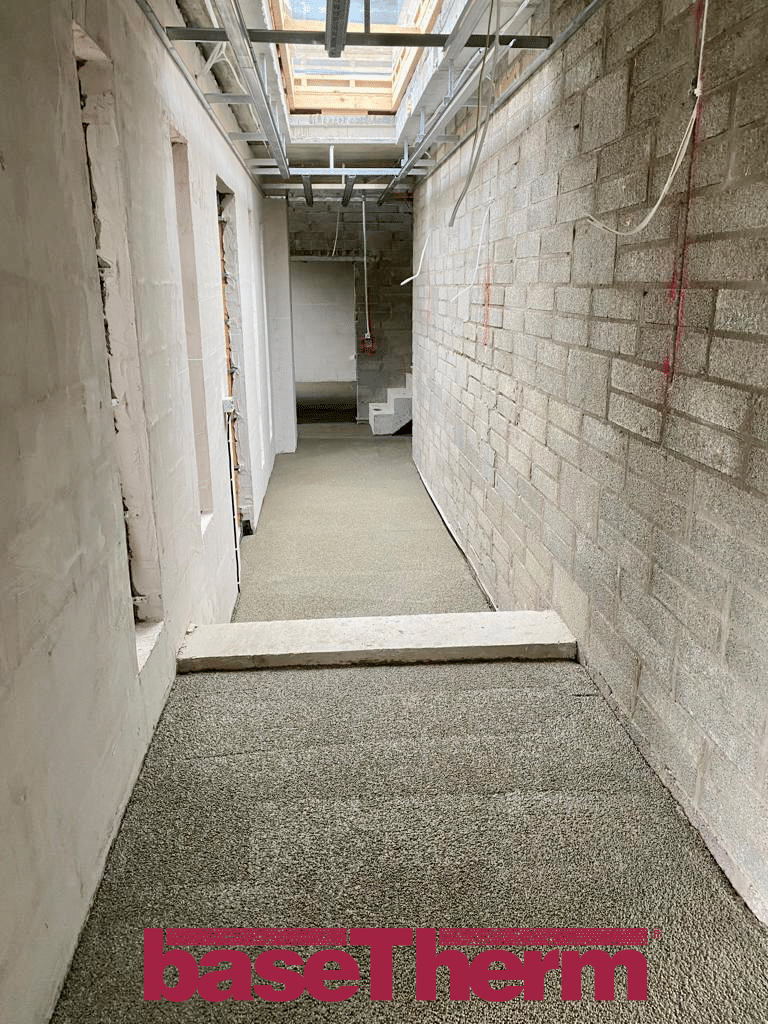

baseTherm® is ultra-lightweight with thermal and acoustic benefits

baseTherm®_BEPS insitu with UFH pipes and polythene ready for screed

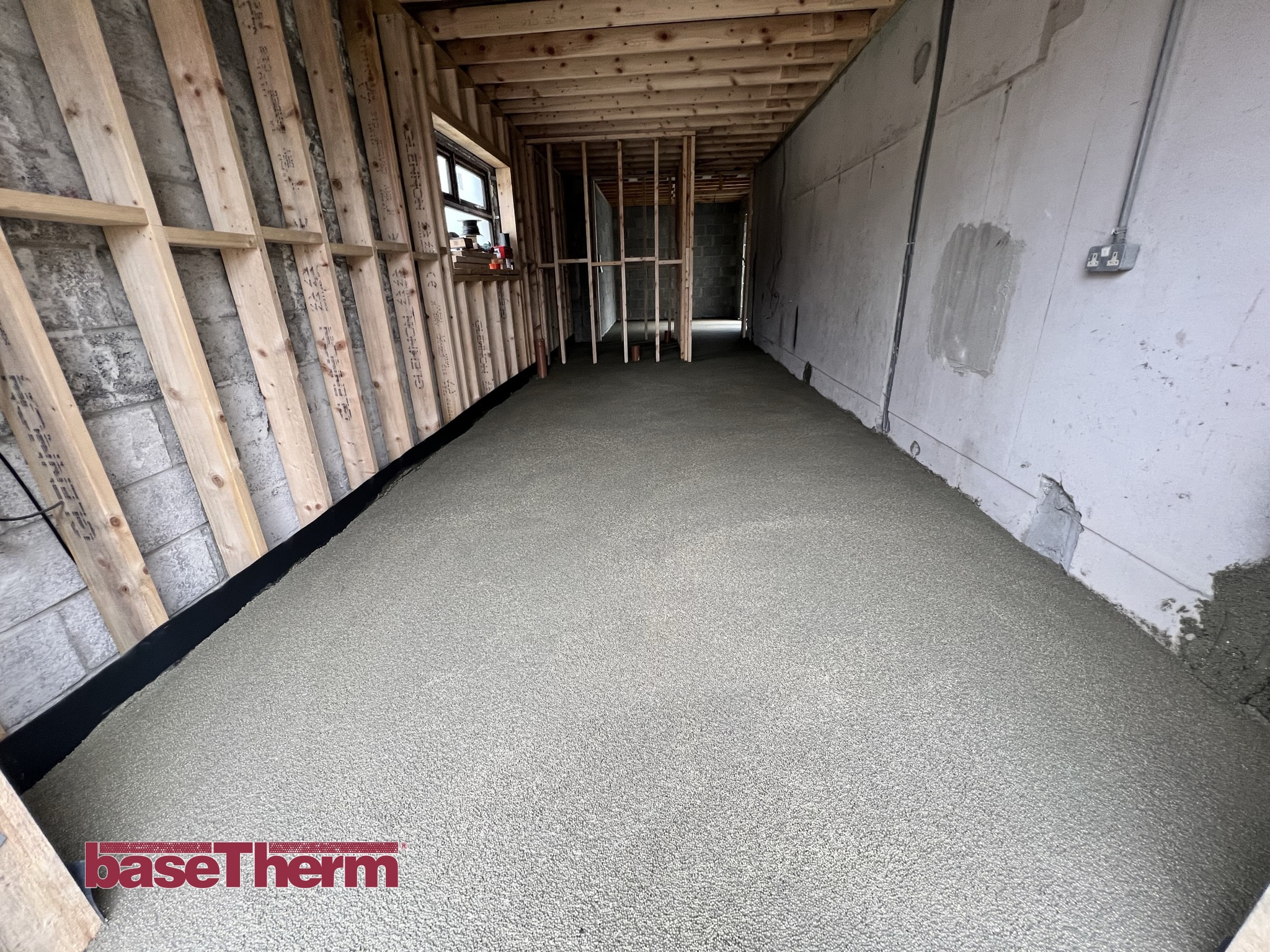

baseTherm® is produced and installed using Mobile Floor Insulation Factory

baseTherm^® may be installed:

• Below a concrete floor slab.
• Below a floor screed on a concrete slab with a hardcore base.
• Above a suspended concrete floor (e.g., block-and-beam) with a floor screed.

EPD | baseTherm® Poured Floor Insulation System for floors

baseTherm^® is suitable for internal application to ground-supported and suspended floors in existing and new domestic and non-domestic building applications. The system is available in four grades, baseTherm® Low Lambda, baseTherm® 150, baseTherm^® 200, and baseTherm^® 250, depending on thermal performance and loading requirements.

baseTherm® is NSAI Agrément certified
